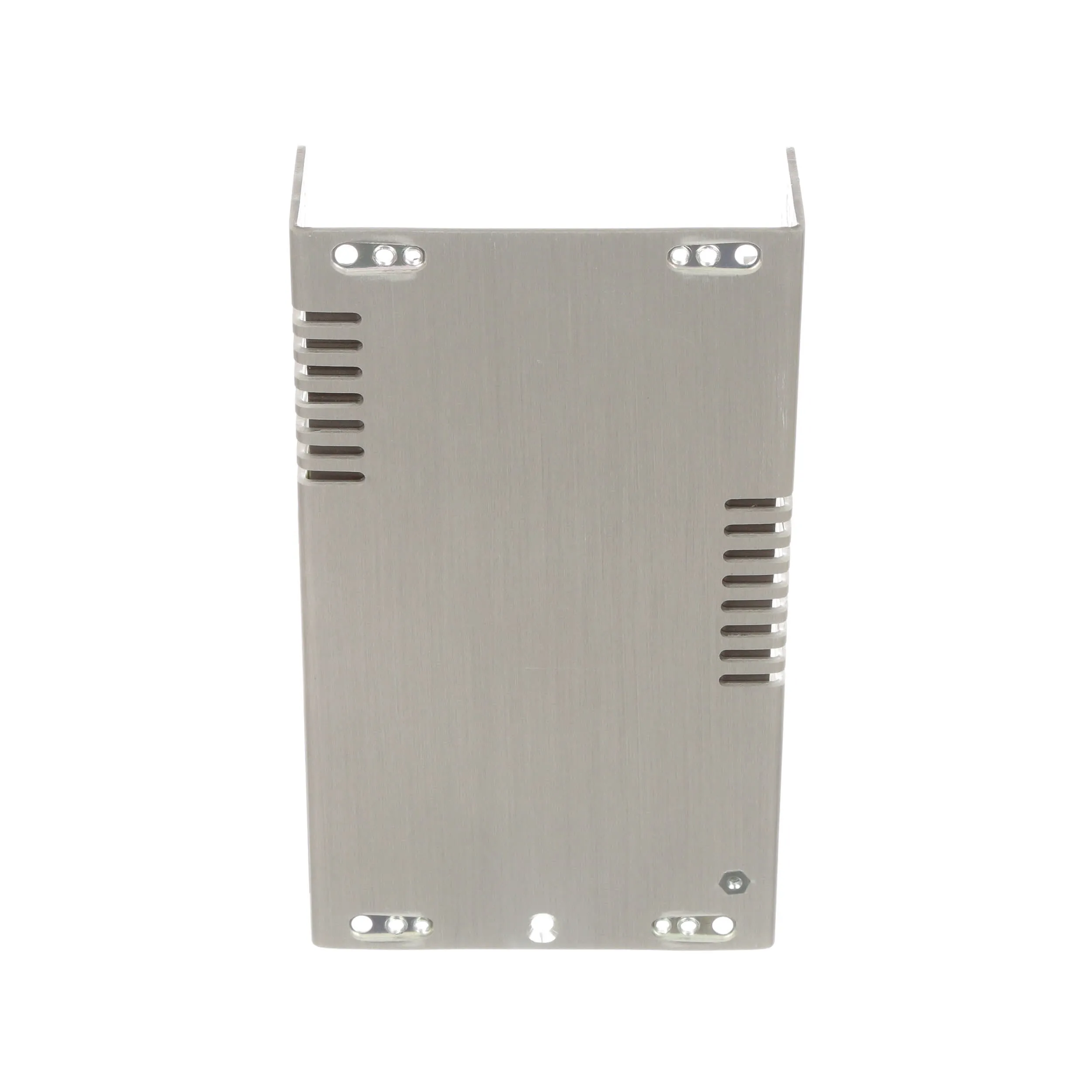

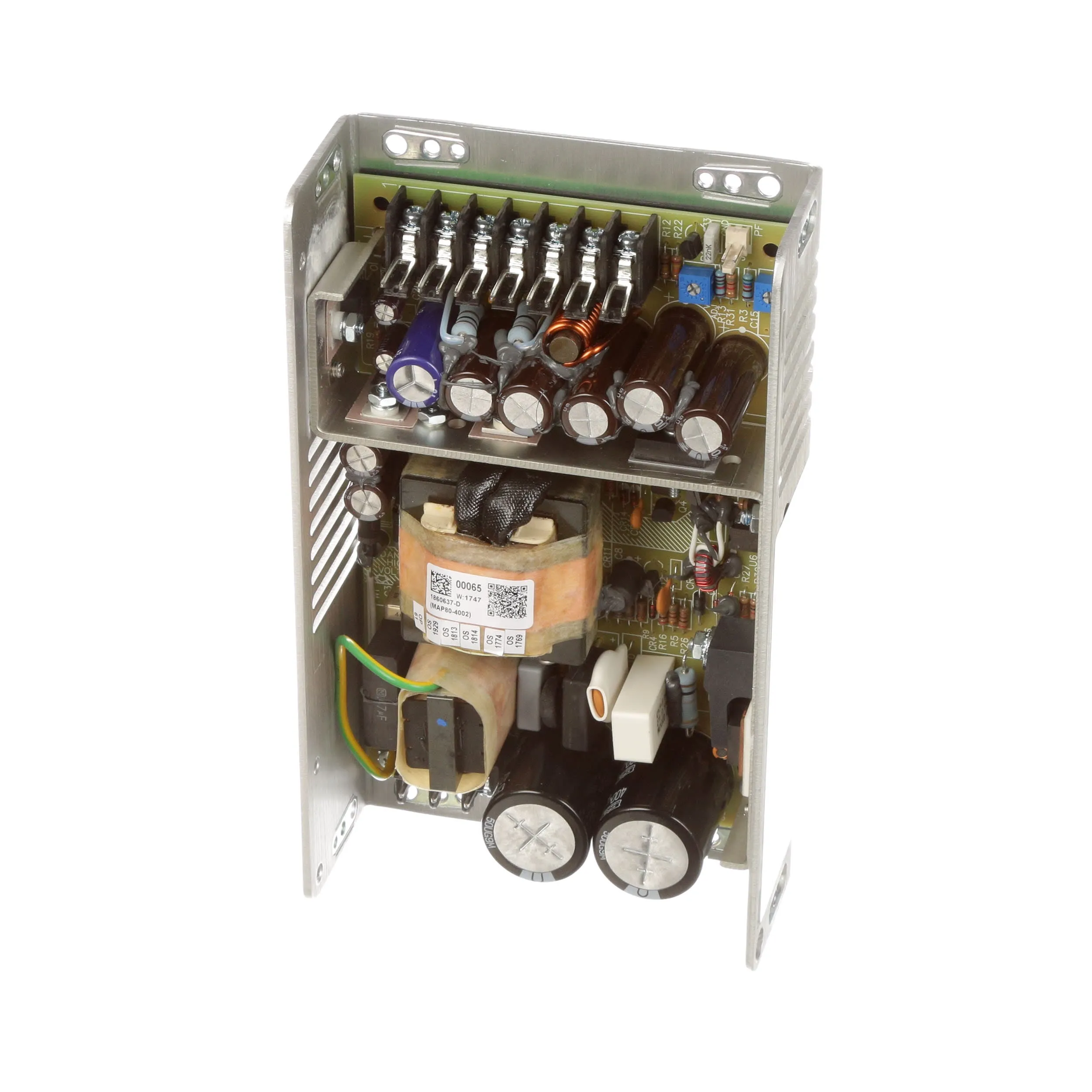

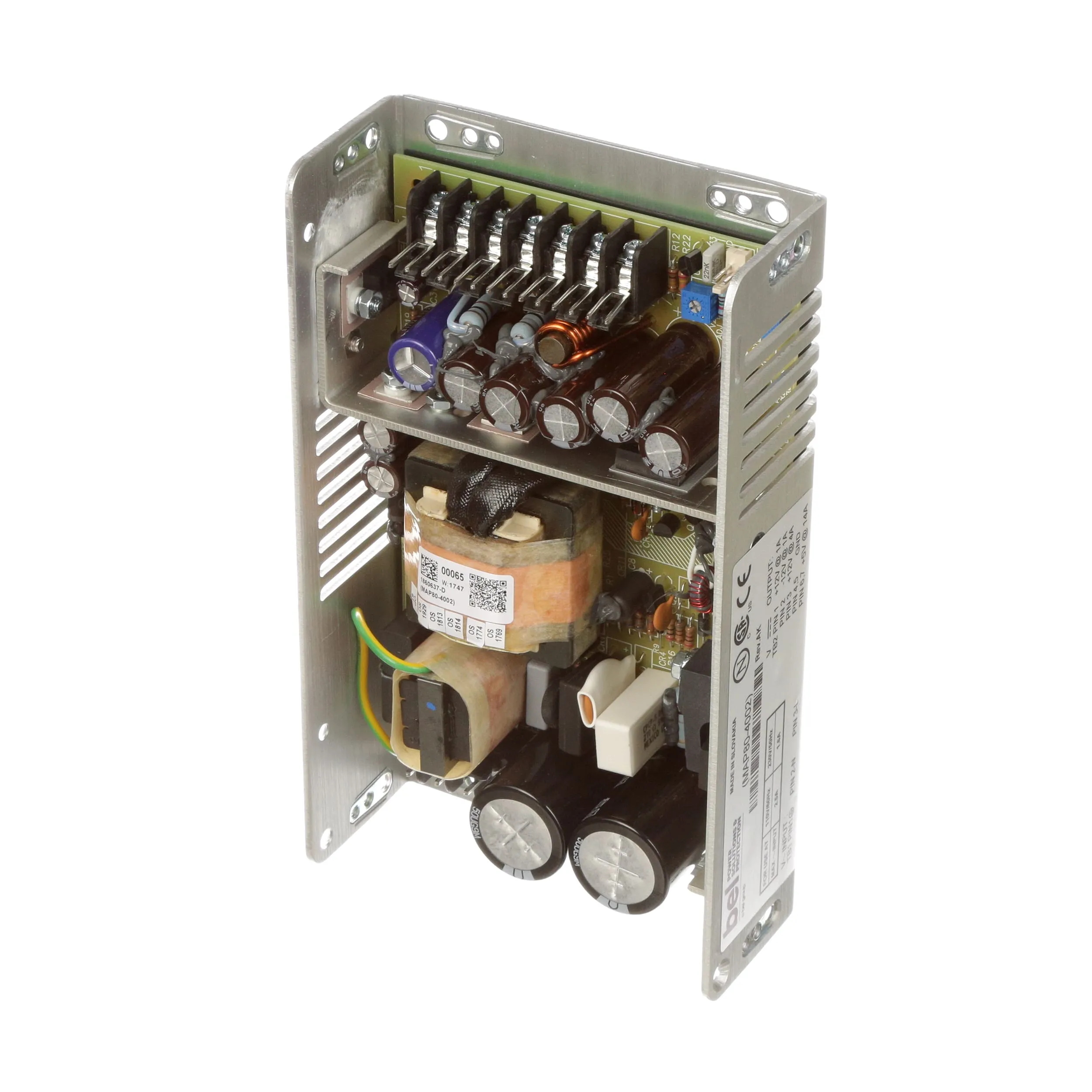

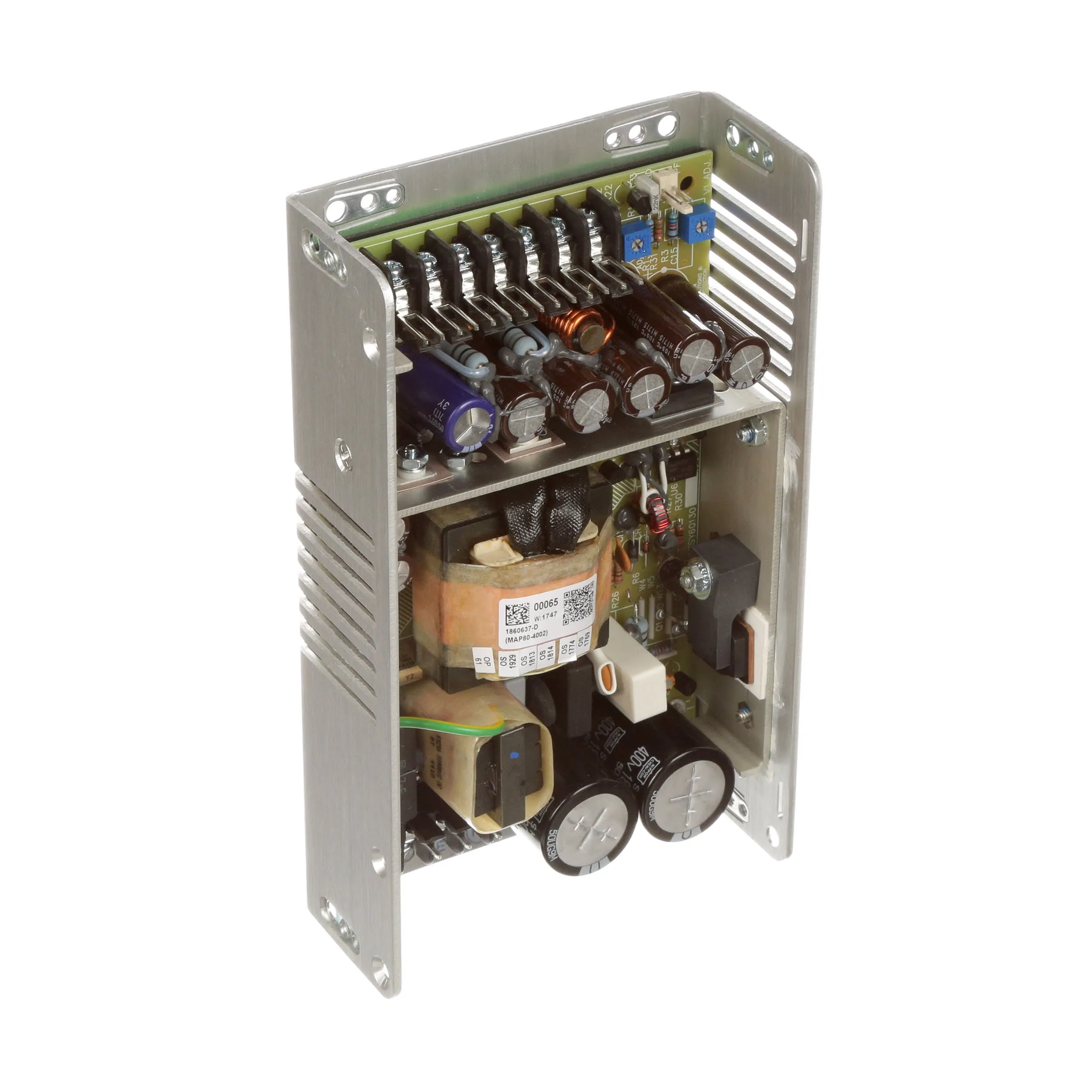

Name: Bel Power Solutions MAP80-4002
SKU: 608599

Product Details

＋

Product Attribute	Attribute Value
Configuration	Open Frame
Current, Leakage	500 μA (Max.)
Dimensions	7.20" L x 4.20" W x 1.80" H
Hold Time	20 ms (Min.) @ 115 VAC (Nom.)
Input Current	2.5 A (RMS) @ 90 VAC⁄1.8 A (RMS) @ 110 VAC
Input Voltage	100 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC
Mounting Type	Panel Mount
Number of Outputs	4 Output
Operating Temperature	0 to 50 °C @ 100% Load
Operation	Switching
Output Current	14A@5V, 4A@12V, 1A@12V, 1A@-12V
Output Power	80 W
Output Voltage	5 VDC, 12 VDC, 12 VDC, -12 VDC
Power Rating	80 W
Primary Type	AC-DC
Product Header	MAP80 AC-DC Series Power Supply
Series
Special Features	Remote Sense
Type	Embedded
Voltage, Input Range	90-135/175-264 VAC
Voltage, Output 1	-5 V
Voltage, Output 2	-5 V
Voltage, Output 3	12 V

Overview

MAP80 AC/DC Series 80 W (Continuous) Power Rating Switching Power Supply

Input transient & ESD compliance

Meets EN55022, class B limits

TTL compatible power fail signal

Greater than 175000 hours MTBF

Metric and SAE mounting inserts

CE Mark Compliances

EN61000-4-2 ESD Level 4 (8 KV): All Map Products

EN61000-4-3 Radiated Level 3 (10 V/M): All Map Products

EN61000-4-4 EFT/B Level 3: All Map Products Except for MAP130-1005, MAP130-4003, MAP130-4010 Which Meet Level 2

EN55022 Conducted Class B: All Map Products Except for MAP30-1005, MAP40-3000, MAP40-3003 Which Meet Class A

EN55022 Radiated Class B: All Map Products Except for MAP40-3000, MAP40-3003, MAP40-3500, MAP55-All Multiple Output Models, MAP110-1012/1024, MAP110-4001/4002/4003/4004/4010, MAP130-1005 Which Meet Class A

Universal Input: 90-132 VAC or 175-264 VAC
