Product Details
＋| Product Attribute | Attribute Value |
|---|---|
| Configuration | Enclosed |
| Input Voltage | 100 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC |
| Mounting Type | Desktop |
| Number of Outputs | 1 Output |
| Operation | Switching |
| Output Current | 3 A |
| Output Power | 36 W |
| Output Voltage | 12 VDC |
| Primary Type | AC-DC |
| Product Header | Z Series External AC/DC Adapter |
| Series | |
| Special Features | Over Current Protection ; Over Voltage Protection ; Short Circuit Protection |
| Type | External |
| Voltage, Input Range | 90-132/180-264 VAC |
Overview

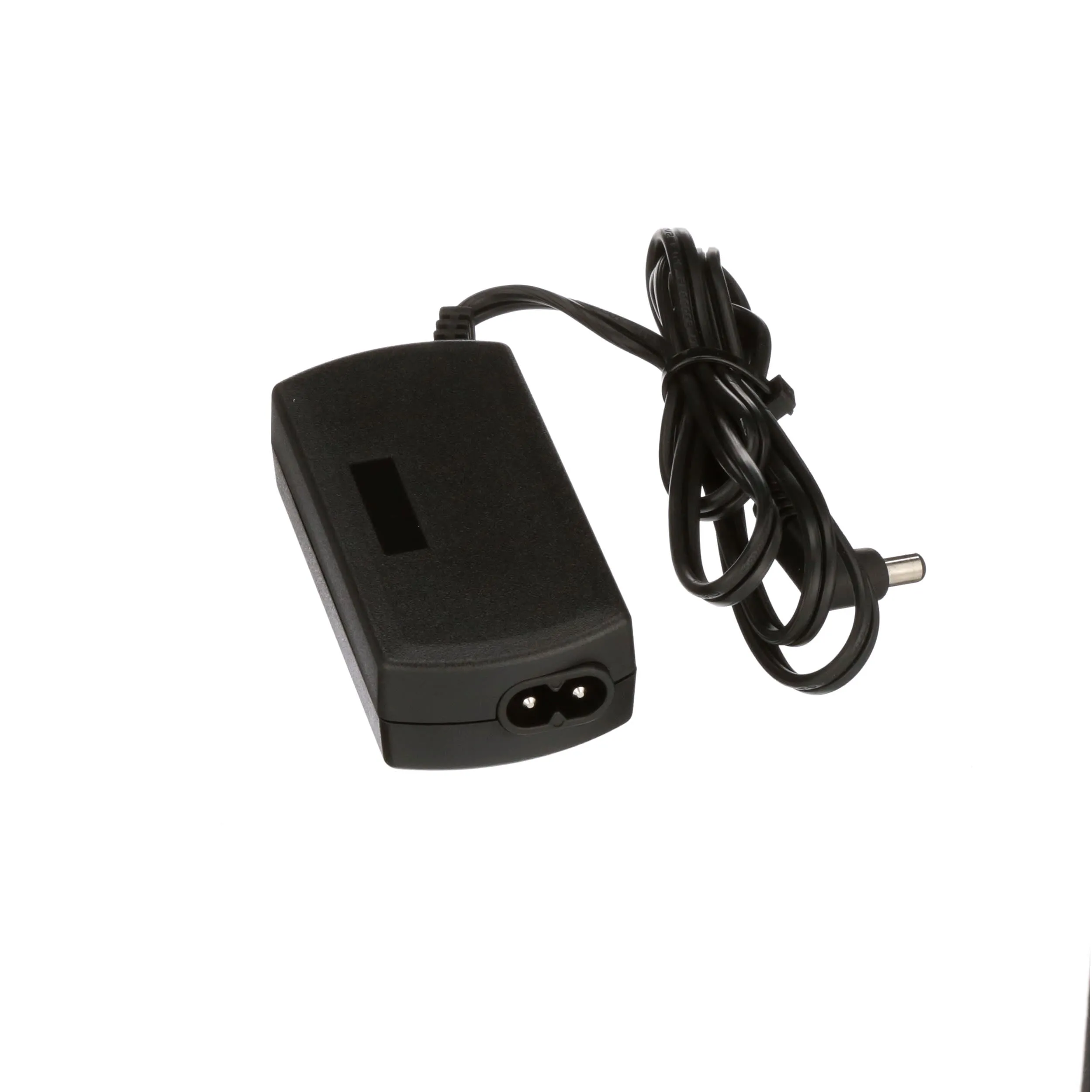

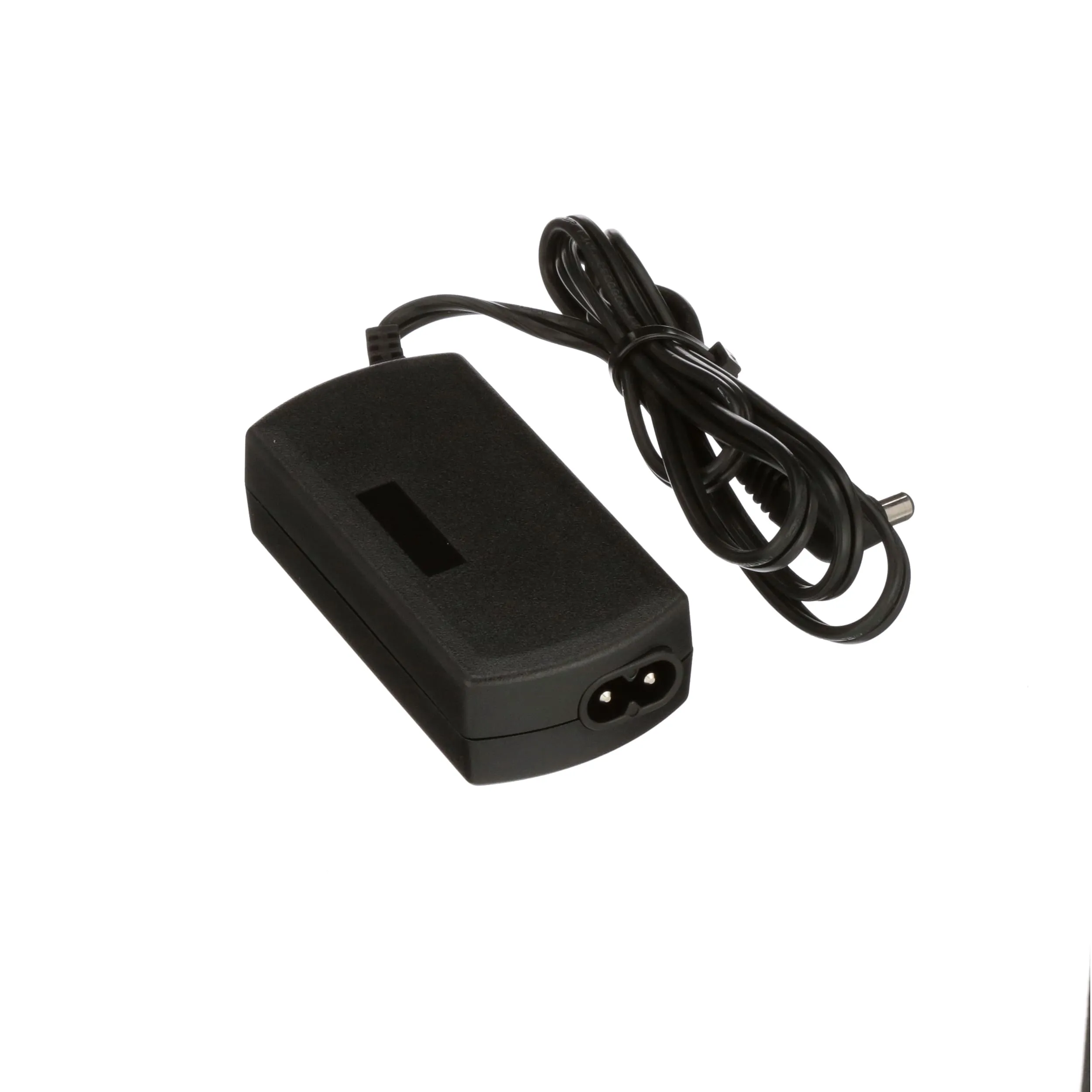

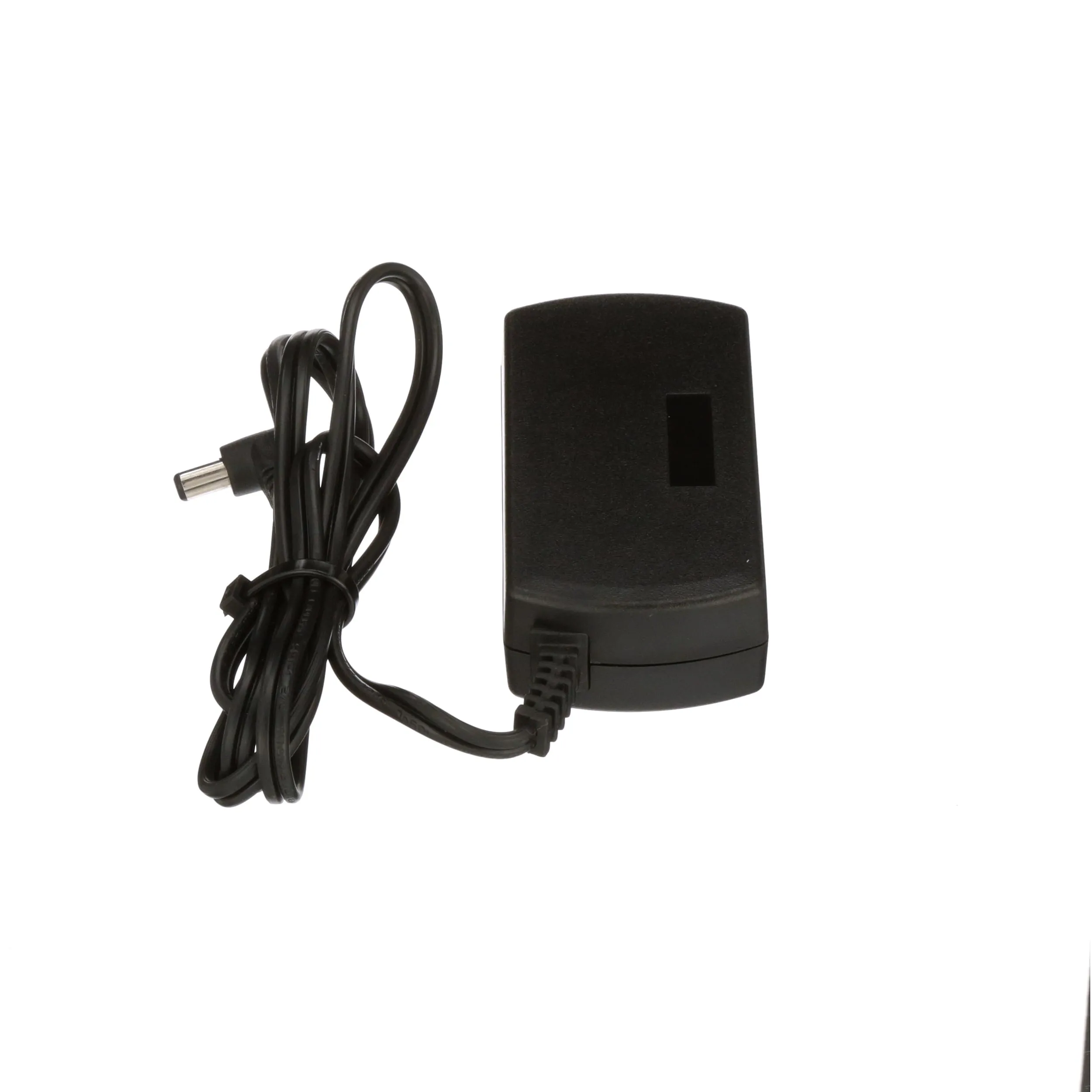

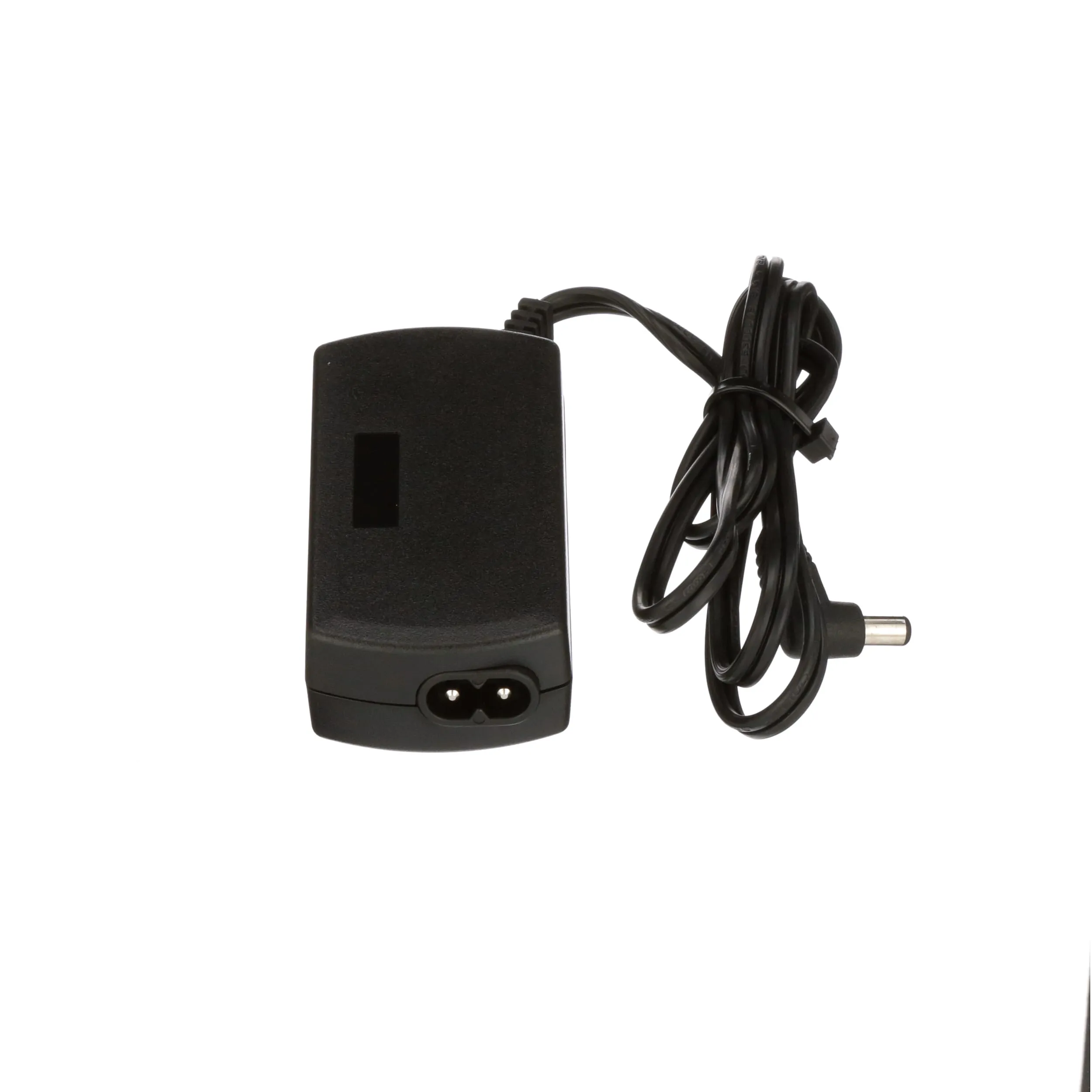

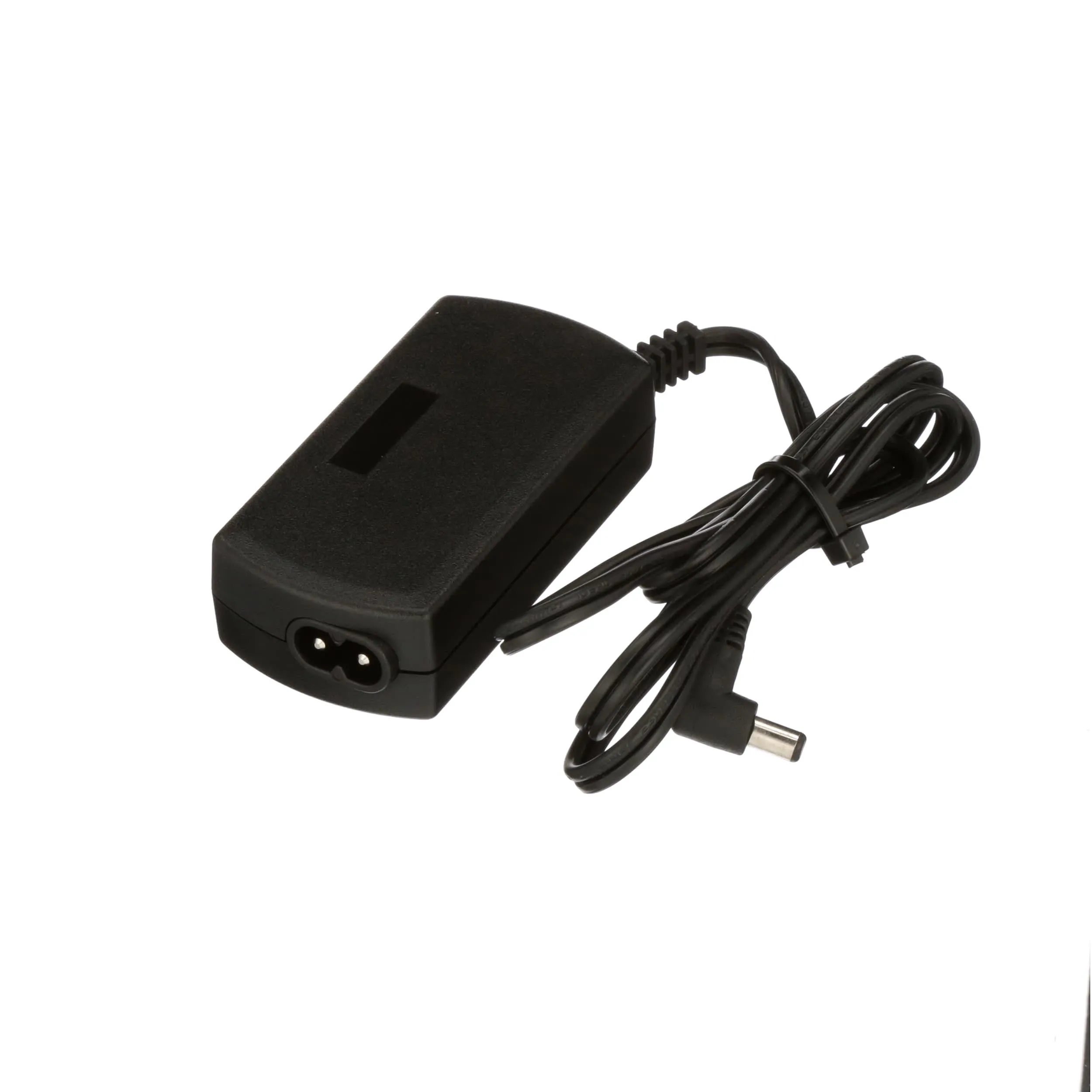

Ultra miniature and lightweight external style switch mode power supply with auto-select universal input. The ZVC Series is so small it's hardly there. Packing 8 watts per cubic inch, the ZVC adapters range from 20 watts to 45 watts and are available in popular voltages from 5 V to 27 V. Applications include, but not limited to, portable computing, multimedia products, industrial products, data-networking gear, printers, and more.
